Güneş 30 35mm uç kelepçe siyahı

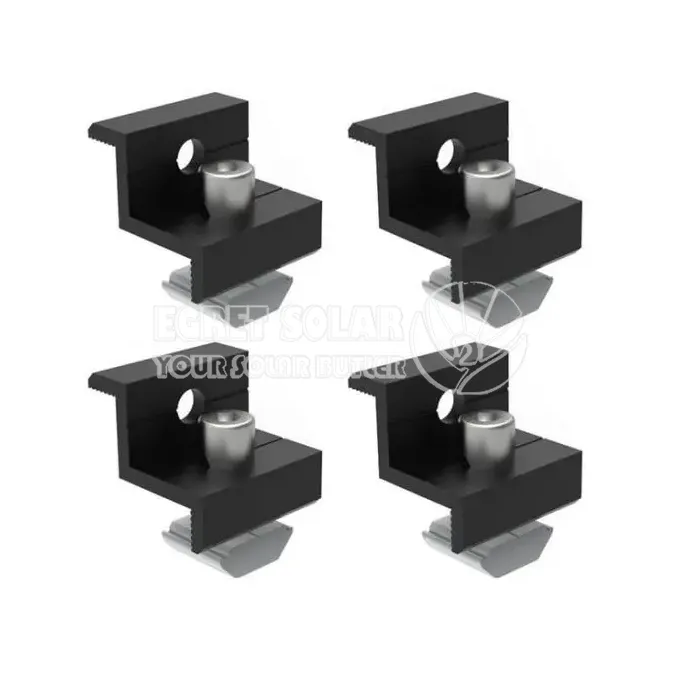

The Solar 30 35mm End Clamp Black used to secure solar panels onto mounting rails.

Product features:

Al6005-T5 & SUS304 bolt material

Anodised finish

Includes 1x 30mm M8 bolt &  nut

Premium Material, Durable & Long Lasting:

Are made of aluminum alloy, which with light weight, large load capacity and strong corrosion resistance, suitable for a variety of outdoor environments. And the mounting screws are made of 304 stainless steel, which has the advantages of rust resistance

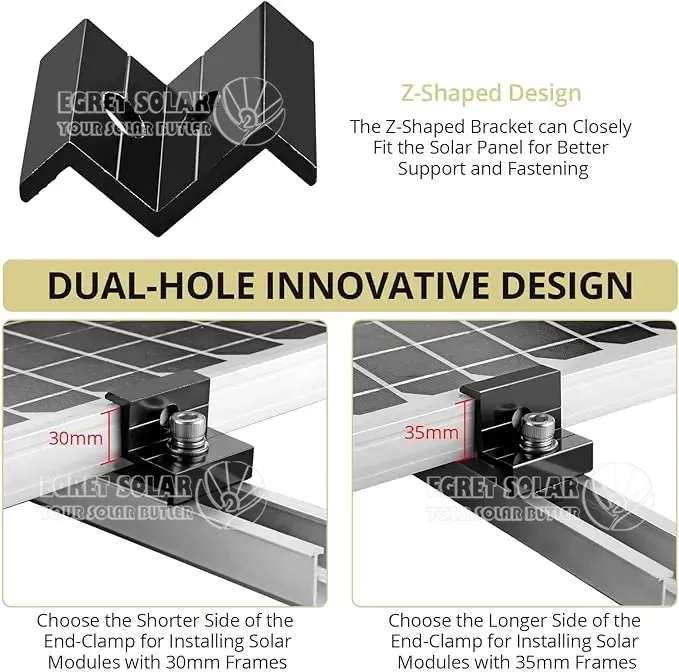

Innovative Two-hole End Clamp:

Solar 30 35mm End Clamp Black is divided into long end and short end, and 2 fixing holes are pre-drilled. Choose the shorter side of the end clip for mounting solar panels with a thickness of 30 mm(1.18"), and choose the longer side of the end clip for mounting solar panels with a thickness of 35 mm(1.38")

Easy Installation:

Aluminum Solar Bracket System end clamp Black have pre-drilled mounting holes on the surface and including groove nuts and screw. The connection between each solar module panel can be easily realized. Easy to install, save time and labor cost

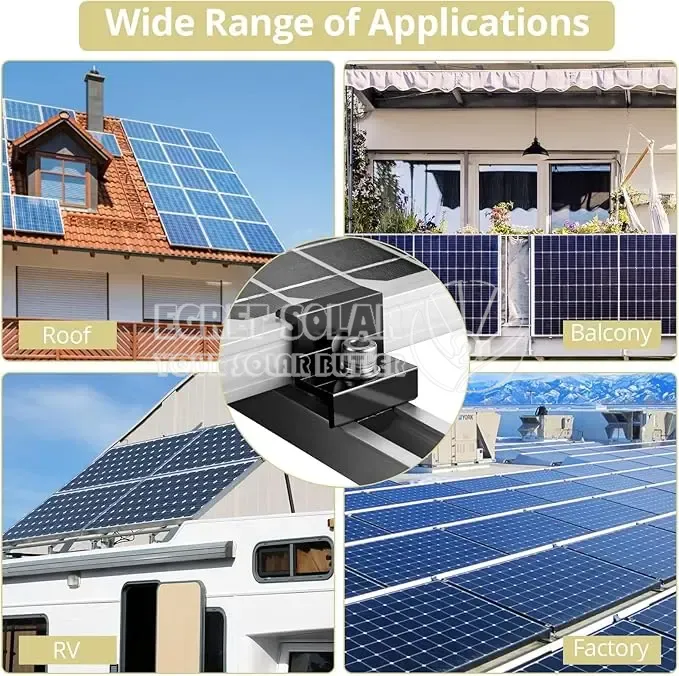

Wide Applications:

The Solar panel Black end clamps Suitable for most home, RV and marine solar panel installations, you can install solar panels on flat and pitched roofs made of tiles, asphalt shingles, ceramic tiles, slab shingles and standing seam boards. Provides toughness to withstand extreme weather conditions

The Solar 30 35mm End Clamp Black is a universal and code compliant mounting system for attaching solar panels to the roof of your property. Designed to be used with either tiled or tin roofs, with any slope from 0-60°（either flat or pitched）, they slot in quite easily at the very spot you want to attach them.30/35 End Clamps Black for use with 30/35mm thick modules, a full range of components are available.

FAQ

1.What is an aluminum end clamp?

Answer: Solar 30 35mm End Clamp Black are a type of component used in solar panel mounting systems to secure photovoltaic (PV) modules onto mounting rails. They are designed to accommodate solar panels with thicknesses of 30/35mm .

2.What are the advantages of using aluminum end clamps?

Answer: 30/35mm Aluminium Fixing Black End Clamp provide a reliable and durable solution for solar panel mounting, as aluminum is lightweight, corrosion-resistant, and long-lasting in outdoor environments.
